Speed Estimation Radar
MR-TE205
Frequency: Operating at 24GHz Applications: Speed Enforcement, Wrong Way Driving Detection Functions: Moving target, Velocity, Direction, Distance on moving objects
MR-TE205 is a high-performance multi-lane speed measurement radar that utilizes MIMO+DBF technology.
Mounted above the roadway, it supports both frontal and side installations, enabling real-time detection and tracking of multiple vehicles across multiple lanes with high positioning accuracy and capture rate.
A single radar unit can monitor vehicle speeds across up to four lanes. When paired with a camera, it can capture speeding vehicles with a capture rate of up to 99%.
Key Performance Highlights
Up to 50 Meters
Maximum Range
5…+ 250km/h
Speed Range
-2…0km/h
Speed Accuracy
50ms
Response Time
4 Lanes
Covery
512 Targets
Simultaneously tracking
-40°C to +85°C
Operating Range
24/7 All-weather
Operating conditions
IP67
Outdoor protection
Technical Features
| Frequency: | FMCW radar working at 24GHz | |
| Detection Range: | 1…50m | |
| Azimuth Beam: | 64 ° | |
| Elevation Beam: | 16° | |
| Mounting Height: | 4 - 10m （Typ. 6m） | |
| Interface: | Ethernet /RS485/WIFI(optional) | |
| Power Supply: | 9.0V…28V DC | |
| Power Consumption: | 12W @12 V | |
| Outline Dimensions: | 150*153*46 mm | |
| Material: | PBT / Cast Aluminum |
Radar Software & Support
Enhance mmWave Radar Performance with Our Software & Expert Support Package
SOFTWARE SUPPORT
Continuous Improvement with Software-Driven Radar
- Includes All Firmware, Algorithm, and Toolchain Updates
- Optimize Radar Performance and Stability
- Advanced Target Detection & Classification
- Comprehensive Radar Data Analysis & Visualization
- Full Suite of Integration & Diagnostic Support Tools
TECHNICAL SUPPORT
Priority Access to Radar Support
- Technical Review & Training Sessions
- System Integration Assistance
- Diagnostics & Troubleshooting
- Performance Evaluation
- Deployment Planning & Guidance
Application Scenario Diagram
Multi-lane Speed Measurement

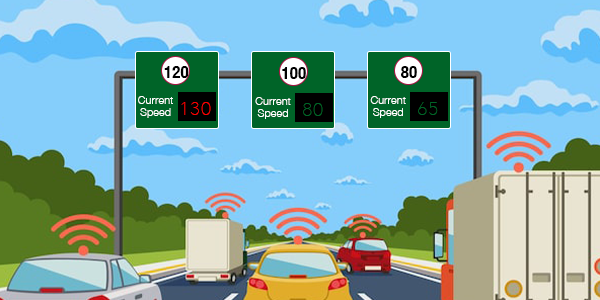

Lane-Level Warning
