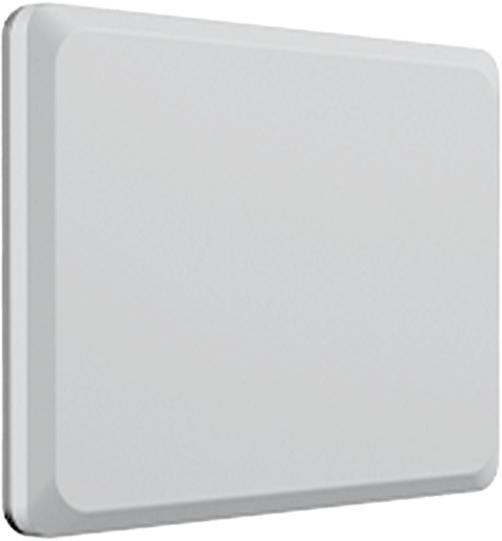

Perimeter Security Radar

MR-SP230

Frequency: Operating at 24GHz (Certified in China, USA, Europe)

Applications: Airport Perimeters, Railway Perimeters, and Critical Facility Perimeters

Functions: Distance, Velocity, Angle on moving objects

Get a Quote

SPR300 is an intelligent perimeter security radar with a detection range of up to 200 meters for crossing targets. When an object enters the protected zone, the radar detects and provides early warnings by analyzing distance, angle, and speed to determine the precise location. It can also integrate with video analytics for target verification and leverage AI algorithms to identify whether the detected object requires an alarm.

The radar delivers high-precision detection of ultra-low-speed moving targets, providing accurate distance and angle measurements while effectively filtering out false targets such as trees. It features high sensitivity, precise detection, easy integration, strong environmental adaptability, stable performance, and cost-effectiveness.

The product is well-suited for critical perimeter security applications in prisons, military camps, squares, airports, ports, oilfields, oil depots, and other sensitive areas.

Radar Software & Support

150m 200m 300m

Human Human Human

Craw/Squat Walk/Run Upright-standing @ 0°

Key Performance Highlights

Up to 300 Meters

Maximum Range

1.5m

Range Resolution

0.06…30 m/s

Detection Speed

0.06m/s

Velocity Resolution

20 ° (H) x 13 ° (V)

Field of View

±1°

Angle Accuracy

32 Targets

Max. Simultaneously Tracking

10 Targets

Simultaneously Output

-40°C to +75°C

Operating Range

24/7 All-weather

Operating Conditions

IP66

Outdoor Protection

Technical Features

	Frequency:	FMCW radar working at 24.05GHz to 24.15GHz
	Refresh Rate:	8Hz
	Detection range：	1…300 m (Pedestrians @ 0°) 1…200 m (Pedestrians, walk/run cross) 1…150 m (Pedestrians, crawl/squat cross)
	Field of View:	Azimuth (-6dB) 20°, Elevation (-6dB) 13°
	Mounting Height:	2 - 3 m
	Communication Interface:	RJ45, RS485
	Functional Interface:	LED
	Alarm Interface:	Relay_Out2, IO_Out2, IO_In
	Communication Protocols:	Radar communication protocol, SDK, API
	Power Supply:	9…15V DC (Typ. 12V DC)
	Power Consumption:	8W (@ 12V DC 25℃)
	Outline Dimensions:	235 x 175 x 54 mm
	Weight:	1.65kg
