NVIDIA Jetson AGX Orin Platform

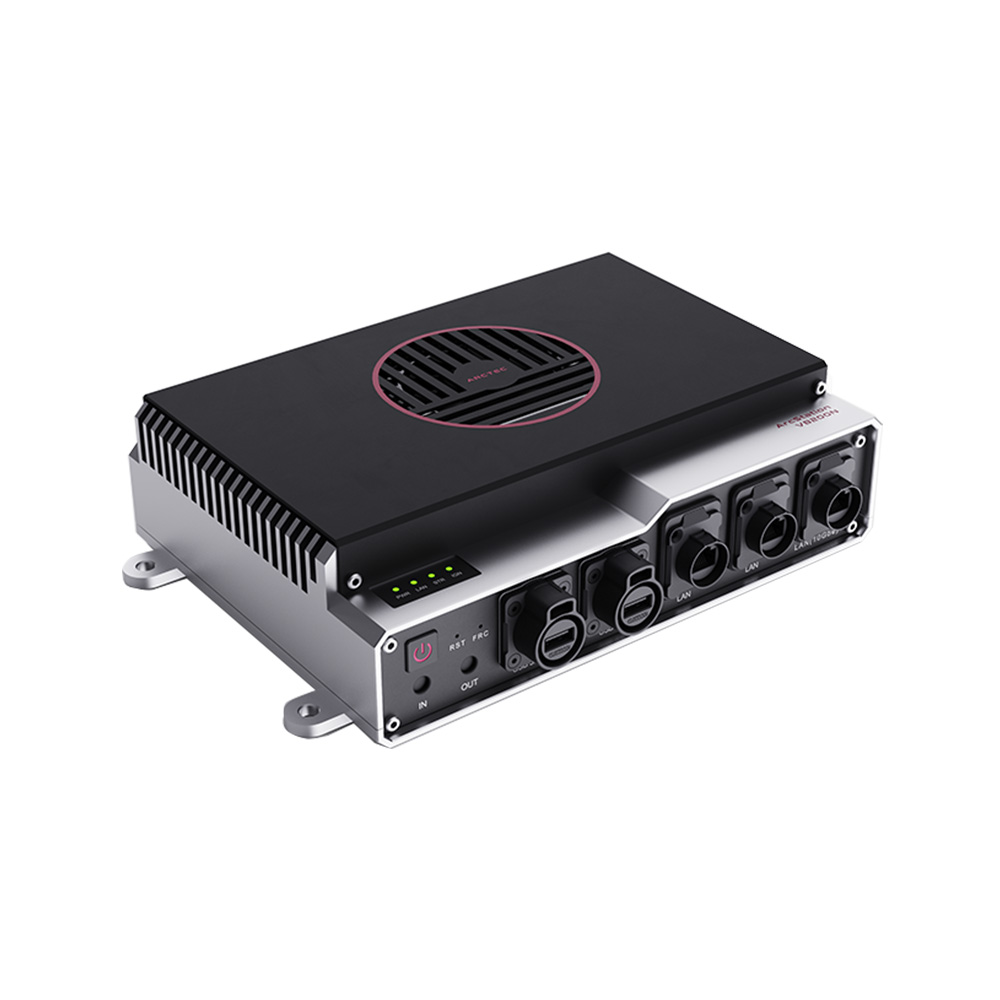

ArcStation V8200

Vehicle-Mounted Edge Computing Box

•AI Accelerator: NVIDIA Jetson AGX Orin 32GB

•AI Performance: 200 TOPS (INT8)

•GPU: 1792-core NVIDIA Ampere GPU with 56 Tensor Cores

•CPU: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU,2MB L2 + 4MB L3

•Memory: 32 GB 256-bit LPDDR5 204.8GB/s

•Storage: 64GB eMMC 5.1

Key Features

Embedded with NVIDIA® Jetson AGX Orin™ module, delivering up to 200 TOPS

Provide 6 ethernet, 2 USB 3.0 2 USB2.0, supporting up to 10 Cameras

Extensive 4G/Wi-Fi wireless interface

Compact size design of 240(W) x 174(D) x 70(H) mm

Support Linux® Ubuntu operating system

Hybrid active fan cooling system, supports wide temperature range from -20°C to +70°C

Interface

Technical Features

	AI Performance:	200TOPS (INT8)
	GPU：	1792-core NVIDIA Ampere c GPU with 56 Tensor Cores
	CPU:	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
	Memory:	32 GB 256-bit LPDDR5, 204.8GB/s
	Video Encode:	1 x 4K60 \| 3 x 4K30 \| 6 x 1080p60 \| 12 x 1080p30 (H.265)
	Video Decode:	1 x 8K30 \| 2 x 4K60 \| 4 x 4K30 \| 9 x 1080p60 \| 18 x 1080p30 (H.265)
	I/O Ports:	1 x 10GbE, 5 x GbE 1 x HDMI 2.0 2 x USB3.0, Type A, 2 x USB2.0, Type A Mic-in (Mono), Line-out (Stereo) 4 in/4 out DIO 1 x RS485, 1 x RS232, 2 x CAN-FD 1 x 24pin IO 1 x M.2 SSD Slot 1 x Micro SD Slot
	Power Supply:	DC 9~36V
	Outline Dimensions:	240mm x 192.3mm x 70mm (with wall mounted)
	Mounting:	Wall, DIN Rail
	Software	Linux® Ubuntu
	Weight:	4.5kg
	Cooling:	Hybrid, active fan cooling
	Temperature:	Operating Temperature: -20°C~70°C, 10%~95% (non-condensing)
